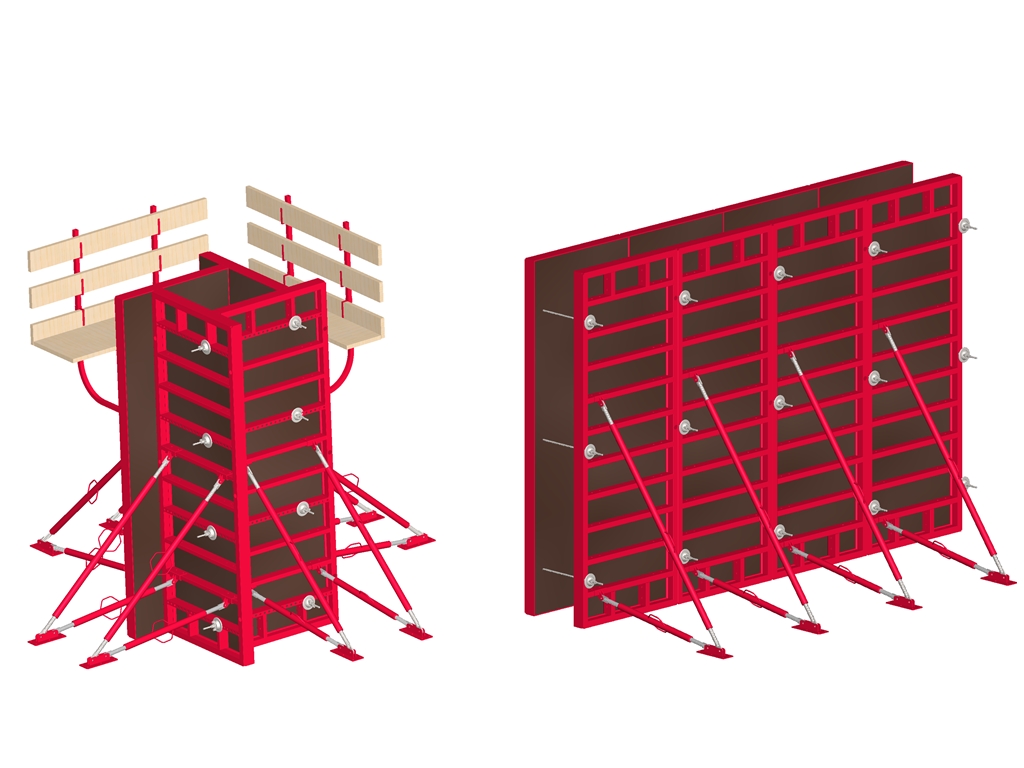

Panel® | Wall and Column Formwork

"The specially profiled panels in standard dimensions ensure fast and efficient assembly, while the film-faced multilayer plywood provides a smooth concrete surface and enables high cycling performance."

1. The system is designed in compliance with concrete pressure of 80 kN/m2.
2. It does not necessiate frontal mounting, all components are ready to be utilized upon arrival at the site.
3. Special profiles forming panel frame strenghten panels and ensure them to be serviceable.
4. Special frame profile and clamp system enable panels to be connected each other at any point and this eliminates the necessity of holes fitting each other on the panel. 3 rows of tie-rod is enough for 3 m of height.
5. A few clamps are sufficient for panel connections. This shortens formwork erection and striking working hours in turn.
6. The socket on frame profile forms a surface for plywood to fit and protects edges of plywood from impacts by surrounding it all around.
7. A plywood in 21 mm thickness is used on panels.
