Mermod® | Frame
Access Scaffolding / Stair Tower Scaffolding Systems

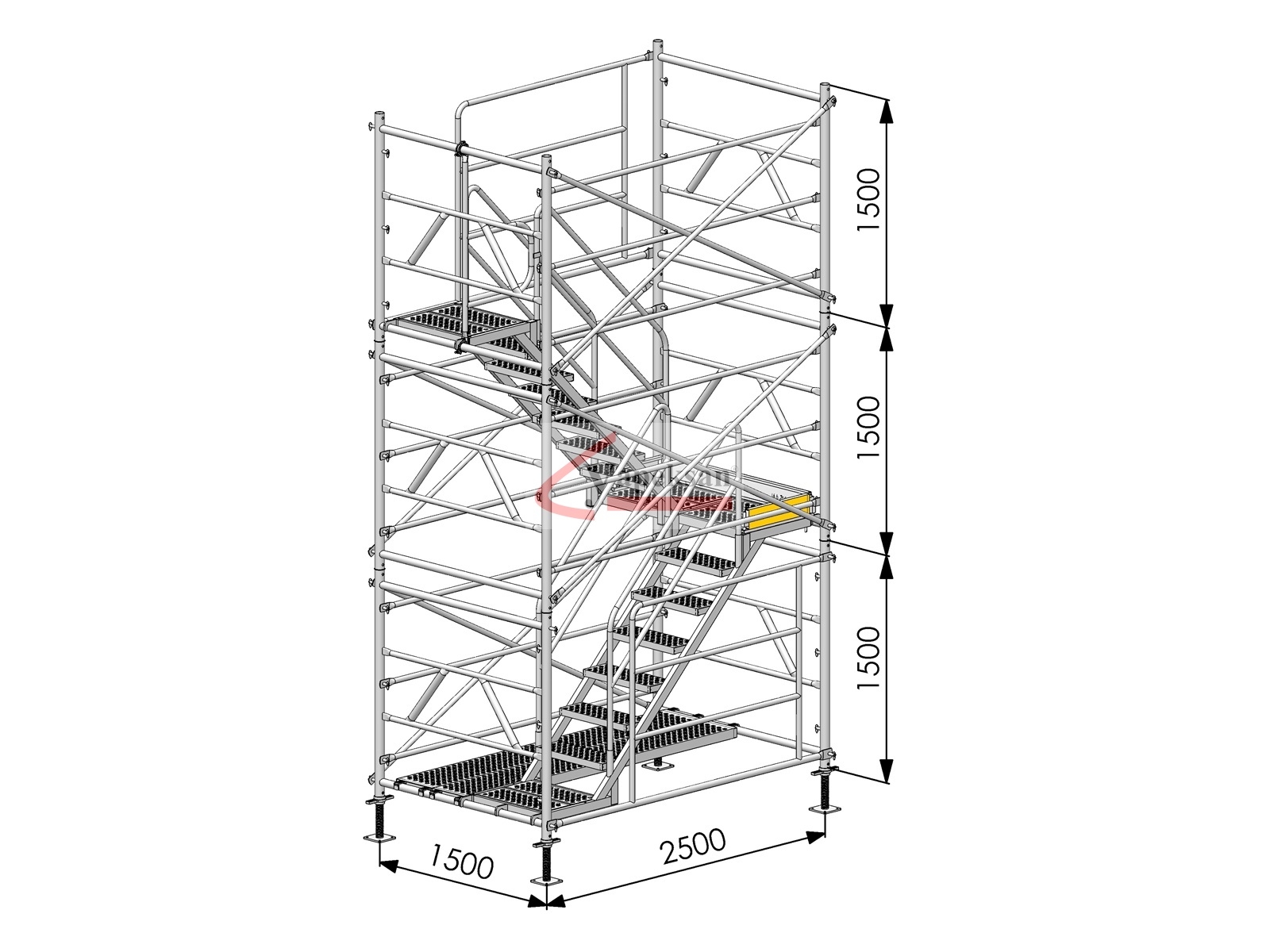

Mermod Stair Tower Scaffolding System, also known as Access Stair Tower Scaffolding System, is an H type (Frame and Type) scaffolding system. It is a scaffolding system with wide stairs and a statically strong carrier system that provides safe walking, descent and climbing to deep foundation excavation areas and high-rise buildings in metro, residential and industrial projects. Mermod Stair Tower Scaffolding System is a TSE certified scaffolding designed and produced in accordance with TS EN 12810-1, TS EN 12810-2, TS EN 12811-1 and TS EN 12811-2 standards.

Material Properties
All scaffolding components are built of industrial tubes that are made of S235JR structural steel (yield strength 235 MPa) conforming to the DIN 2394, TS EN 10305-3 and TS EN 10219-1/2 standards.

Load Class
The stair tower system was designed in accordance with load class 4 of the TS EN 12811-1 standard, schedule 3. Service load on the working area is accepted to be 3 kN/m2 (300 kg/m2). Scaffolding platforms are not allowed to carry loads higher than 300 kg/m2. In addition, any single load heavier than 300 kg cannot be applied on an area smaller than 50cmx50cm, and any single load heavier than 100 kg cannot be applied on an area smaller than 20cmx20cm.

Keywords:
access scaffolding, stair tower scaffolding
