Masamod® | Frame
Formwork Shoring Scaffolding Systems

Masamod Frame Type Formwork Shoring Scaffolding is a scaffolding model designed and certified according to EN 12812, EN 12813 and used as carrier scaffolding under floors and beams. Masamod® frame type formwork scaffolding is a scaffolding system brand of YAPEKSAN.

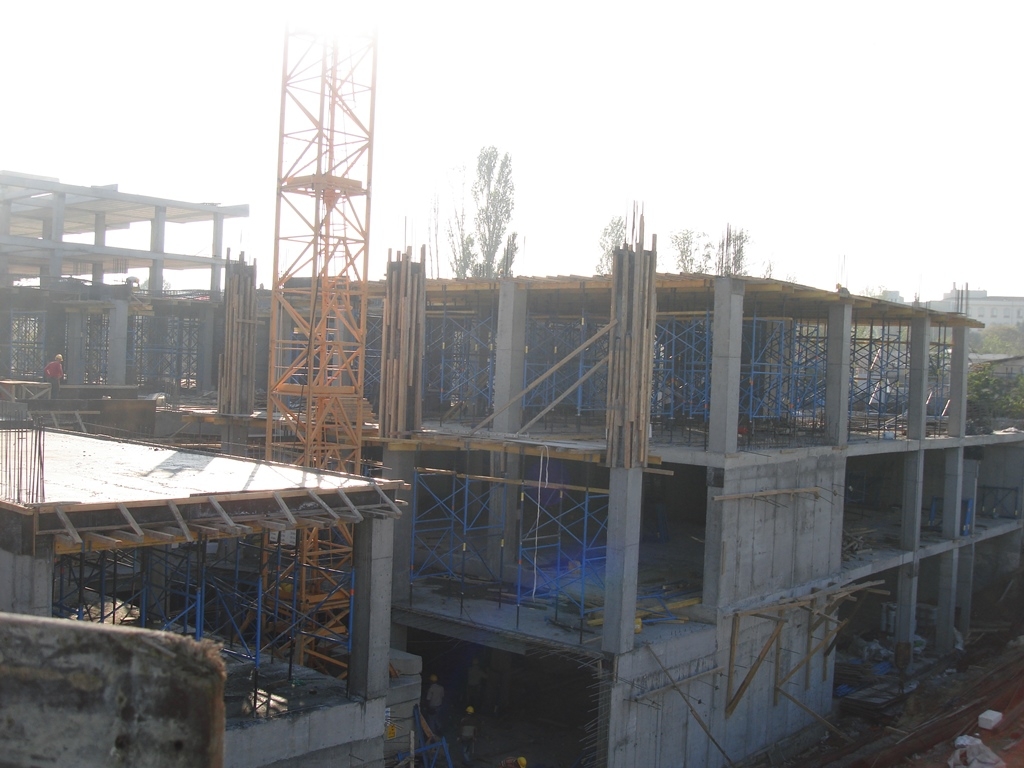

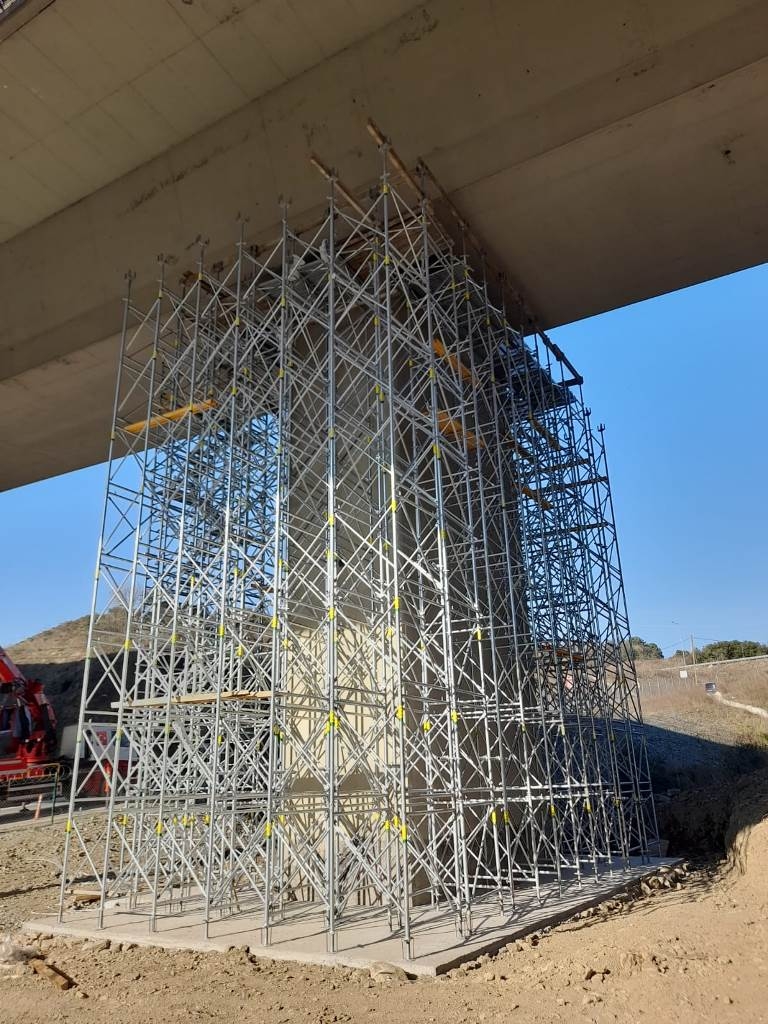

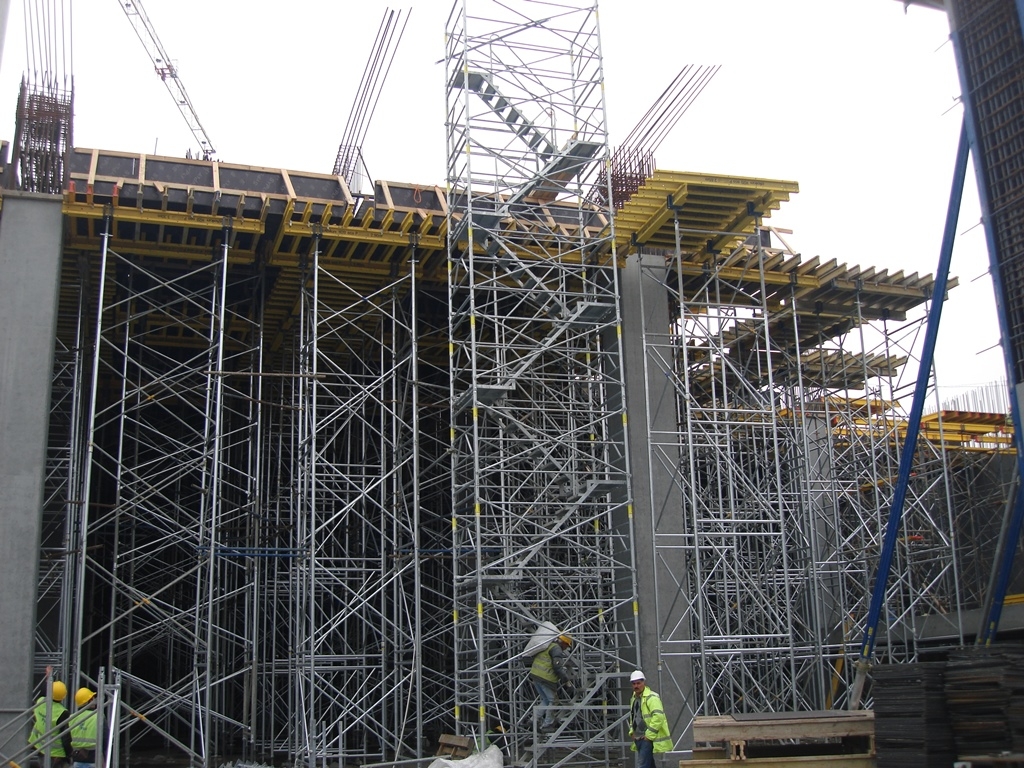

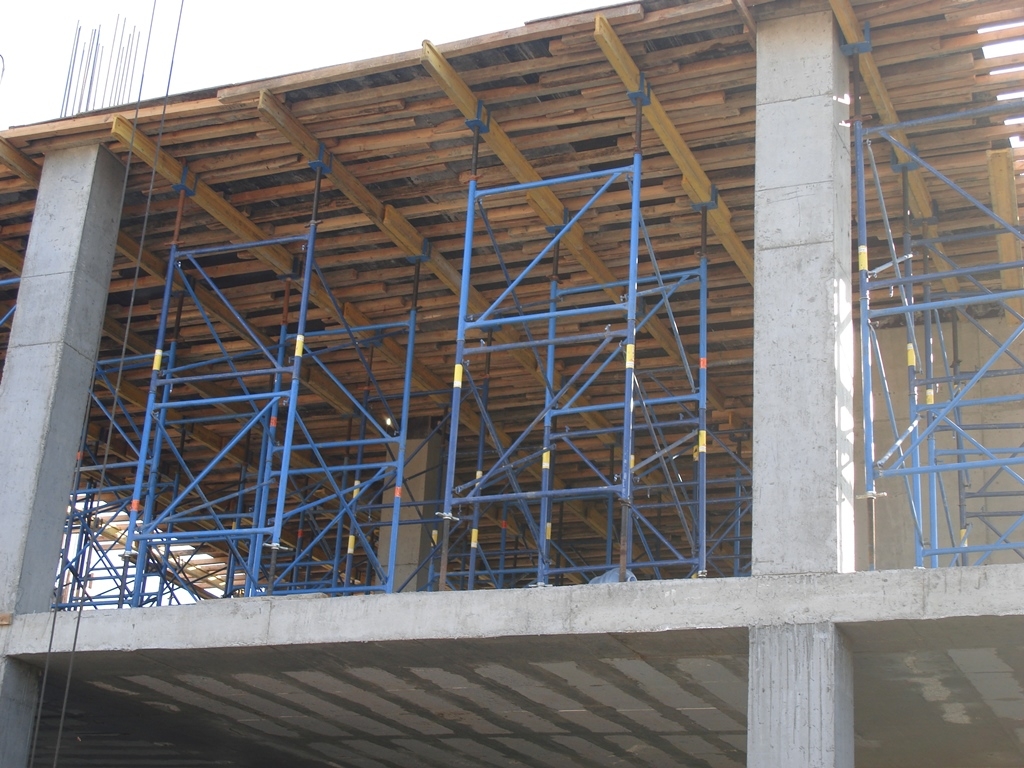

Masamod scaffolding system is a heavy load formwork scaffolding that is generally used as formwork support in structures where the distance between floors and slab concrete thickness are high. Masamod scaffolding system has a very rigid structure with its frame system and horizontal and diagonal elements.

System Features:
» Frame vertical members of the system are built of Ø60x3 mmor Ø60x4 mm tubes depending on the project, while Ø48x3mm tubes are used for frame horizontal members.
» Other horizontal and diagonal members of the system are built of Ø34x2.5 mm or Ø38x2.5 mm tubes depending on the project.
» The whole system is TSE certified and built of tubes with mechanical conformity tests.

Material Properties:
» All scaffolding components are built of industrial tubes that are made of Fe37structural steel conforming to the DIN 2394, TS EN 10305-3 and TS EN 10219-1/2 standards (yield strength 235 MPa).



Material cross-sectional values	Frame Vertical Bearer
Outer Diameter D (mm)"	60.3
Wall Thickness t (mm)	3
Cross-Sectional Area A (cm2)	5.4
Unit Weight G (kg/m)	4.24
Moment of Inertia I (cm4)	22.22
Elasticity Strength Mom. Wel (cm3)	7.37
Radius of Inertia ix (cm)	2.03
Plastic Strength Mom. Wpl (cm3)	9.86

Load Bearing Capacity of “110 cm Frame” props is 62 kN.
Load Bearing Capacity of “150 cm Frame” props is 55 kN.
Load Bearing Capacity of “180 cm Frame” props is 49 kN.



Masamod Shoring System Module

1 - Steel H Frame
2 - Diagonal Connecting Bar
3 - Lower Adjustment Rod
4 - Upper Adjustment Rod
5 - Four-Way Cap
6 - Steel Fastener
